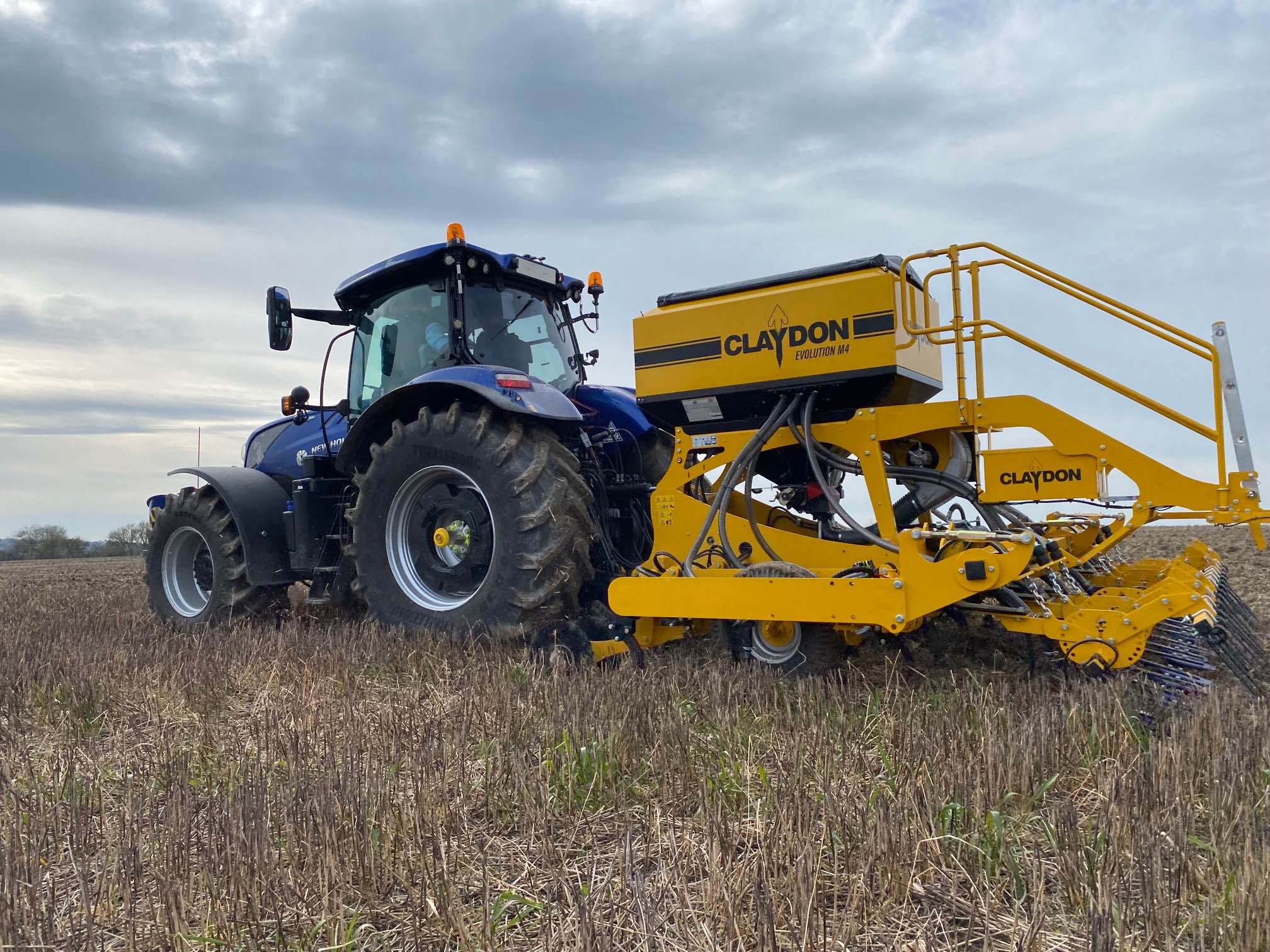

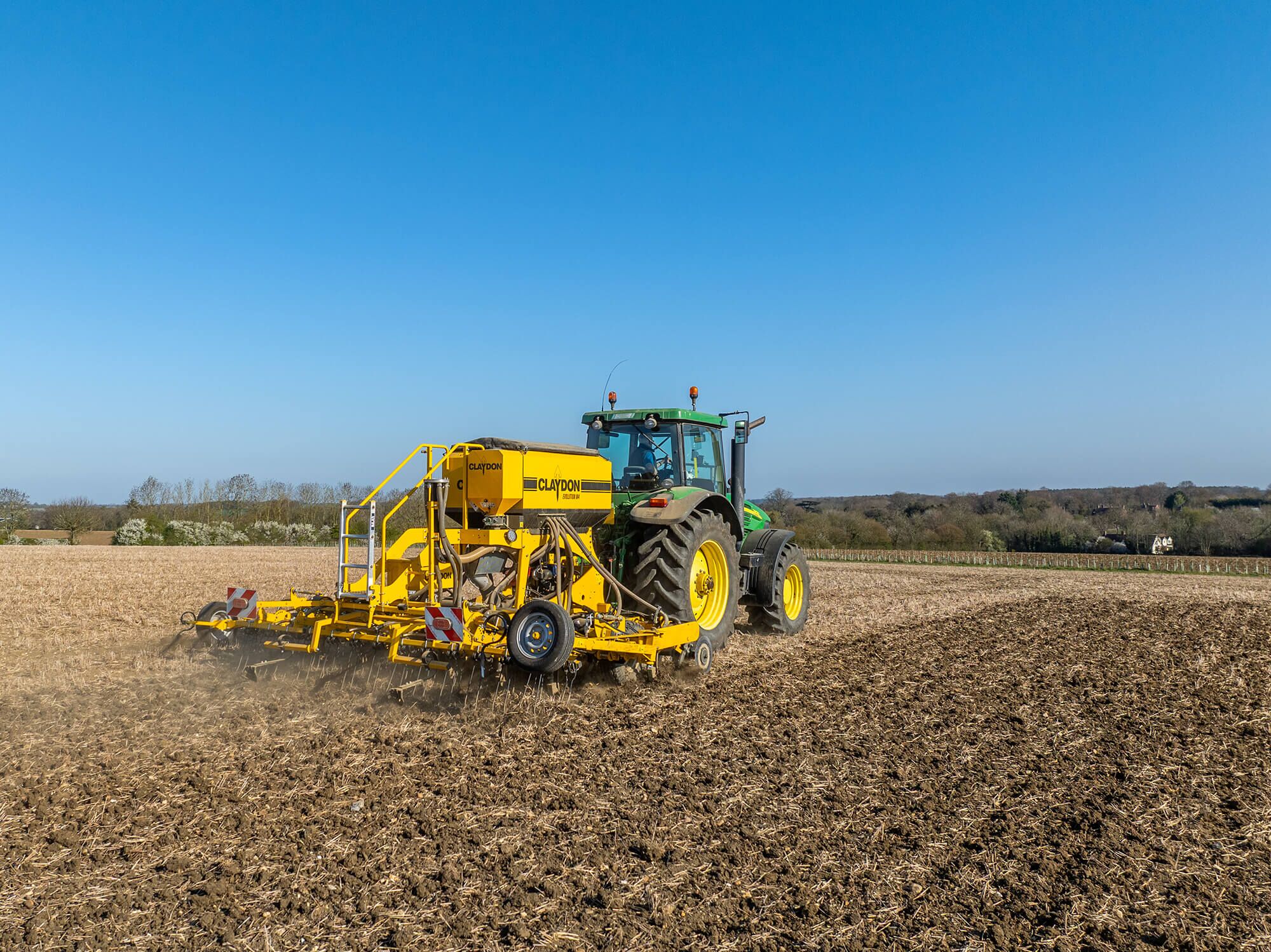

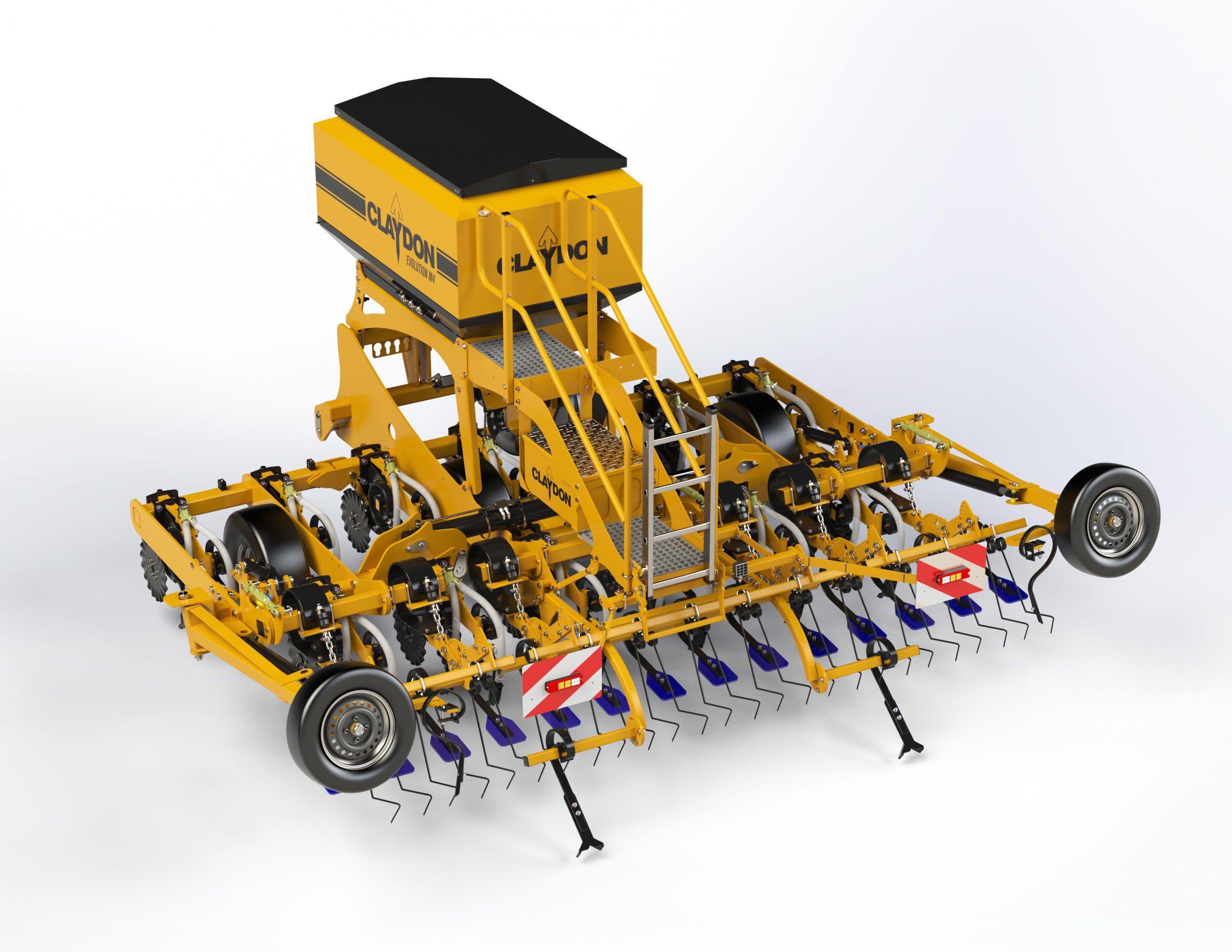

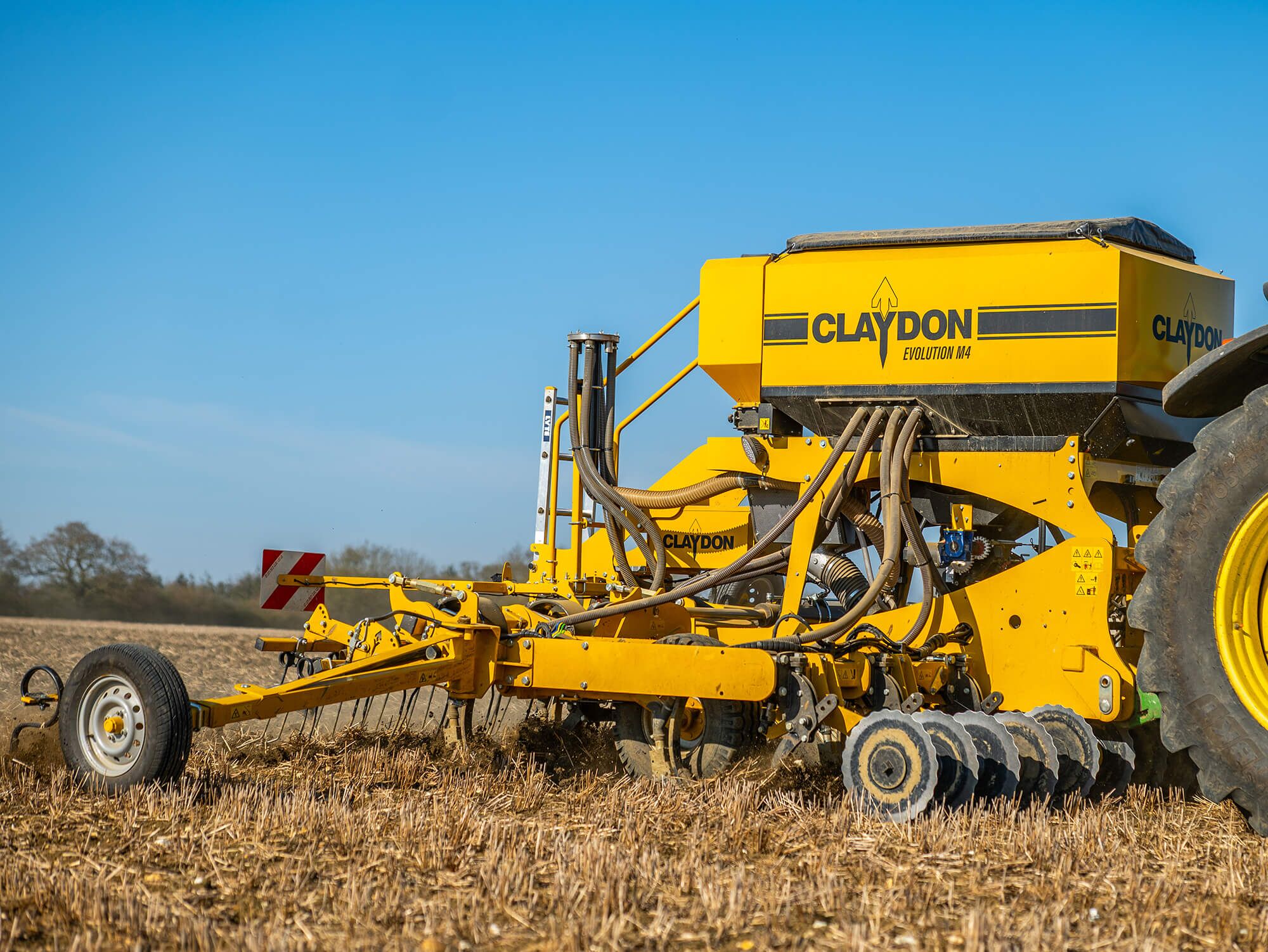

M4 EVOLUTION

The 4m Evolution seed only model has a hopper capacity of 1,910 litres and comes with a full range of rear toolbar and seeding set-up options. The leading tine can also be swapped out for the LD lower disturbance set-up.  GPS speed sensing, electronically driven metering systems and a 4-channel drill computer are fitted as standard.  The M4 has a recommended minimum power requirement of 200 hp.

Category:
Get a Quote

Description

Design

  • Simple, solid design

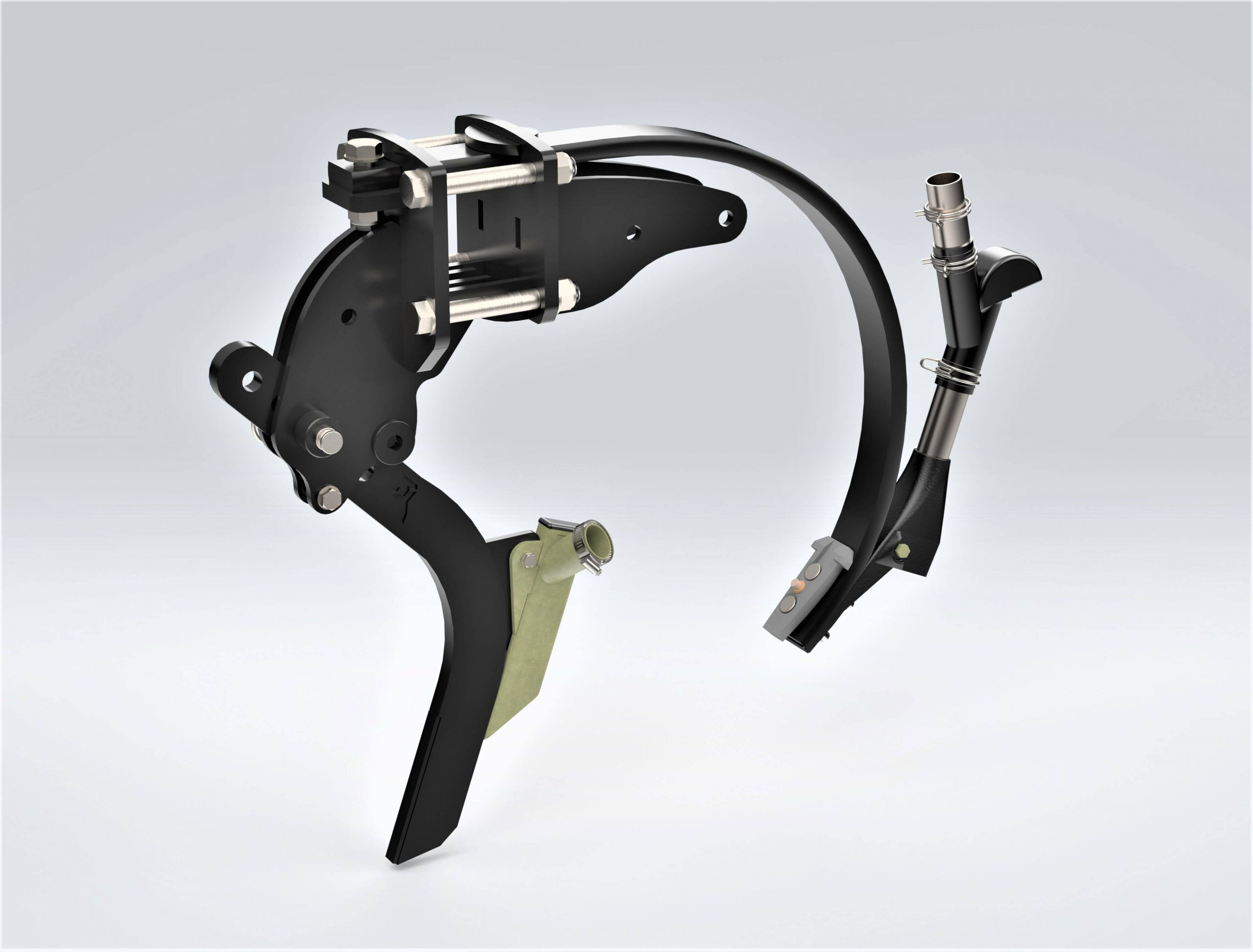

  • Longlife tungsten carbide leading tines
  • Exact seed placement (wheels run on undisturbed ground)
  • Self levelling chassis grades soil and follows contours
  • Hydraulically controlled front disc toolbar option
  • Hydraulic/shim seed depth adjustment
  • Larger hopper to reduce downtime and increase output
  • 90 litre hopper option with venturi, toolbar or inter-row distribution

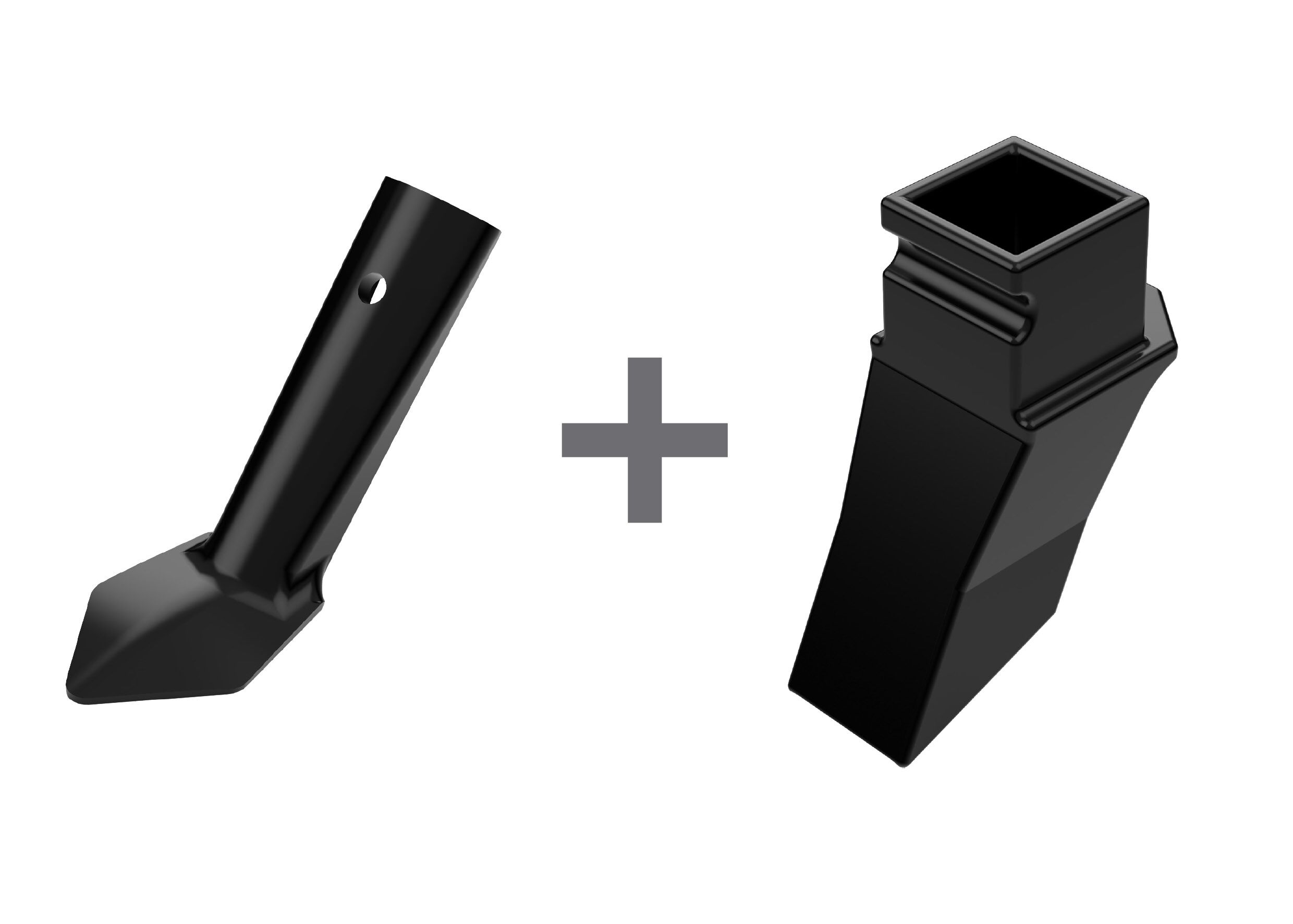

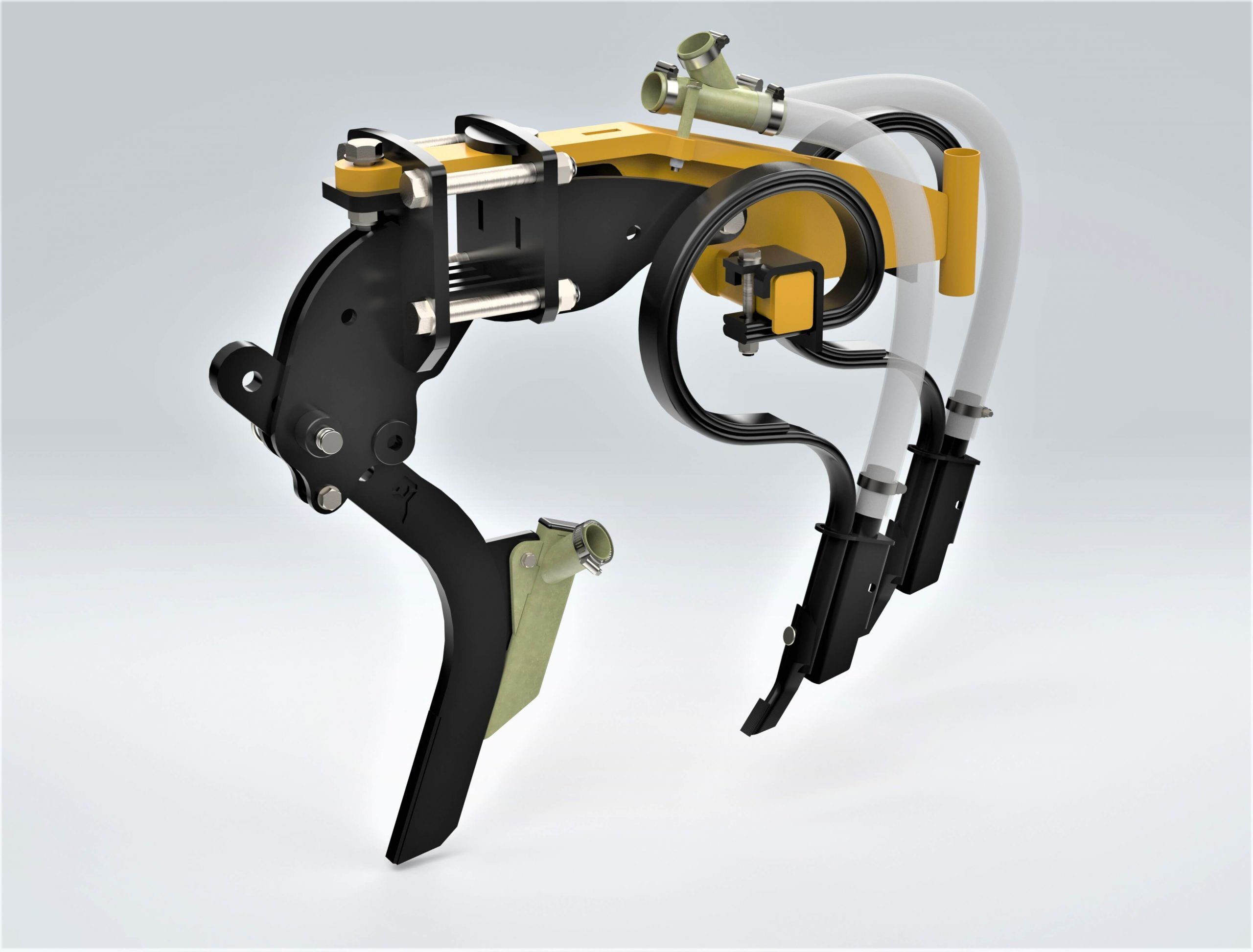

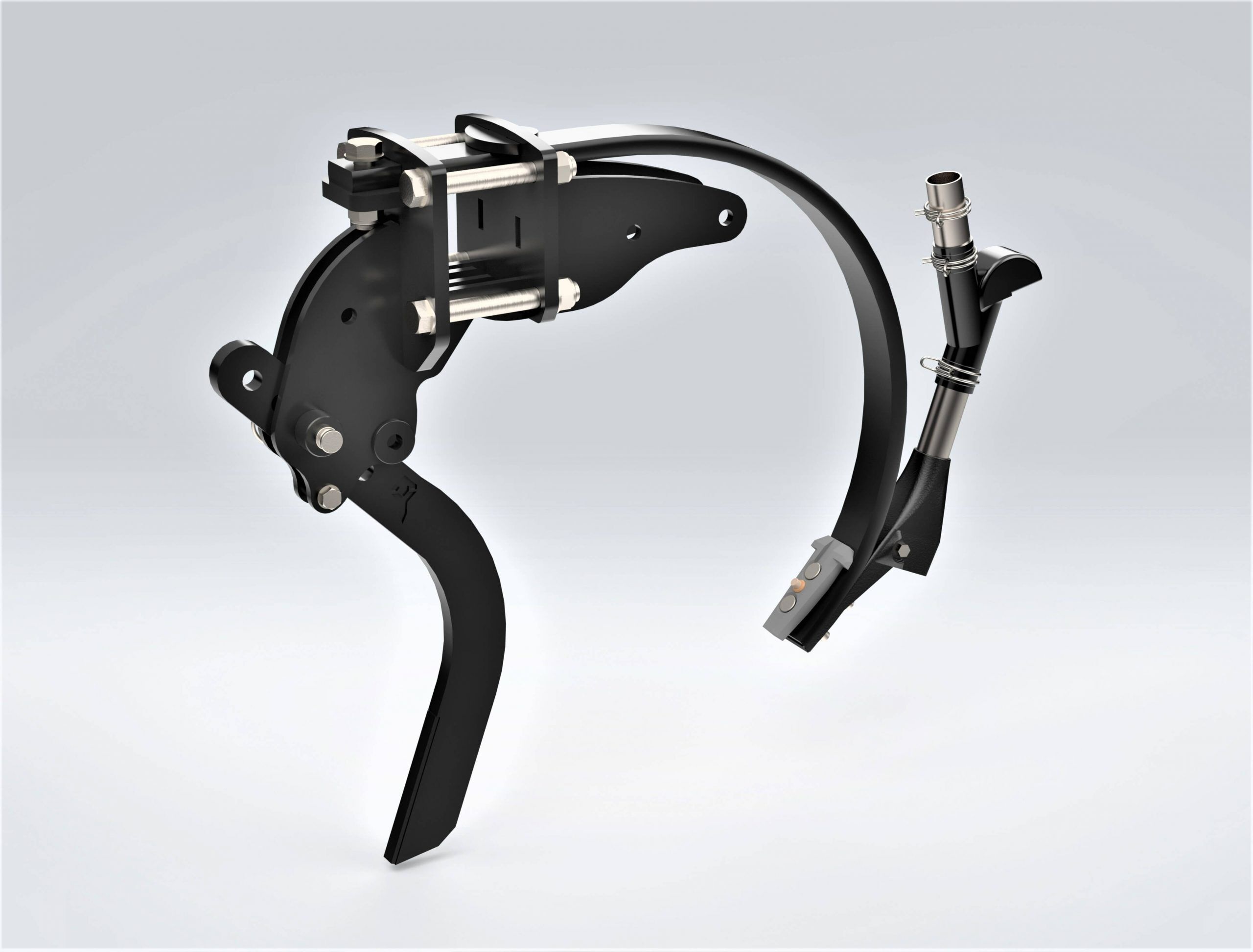

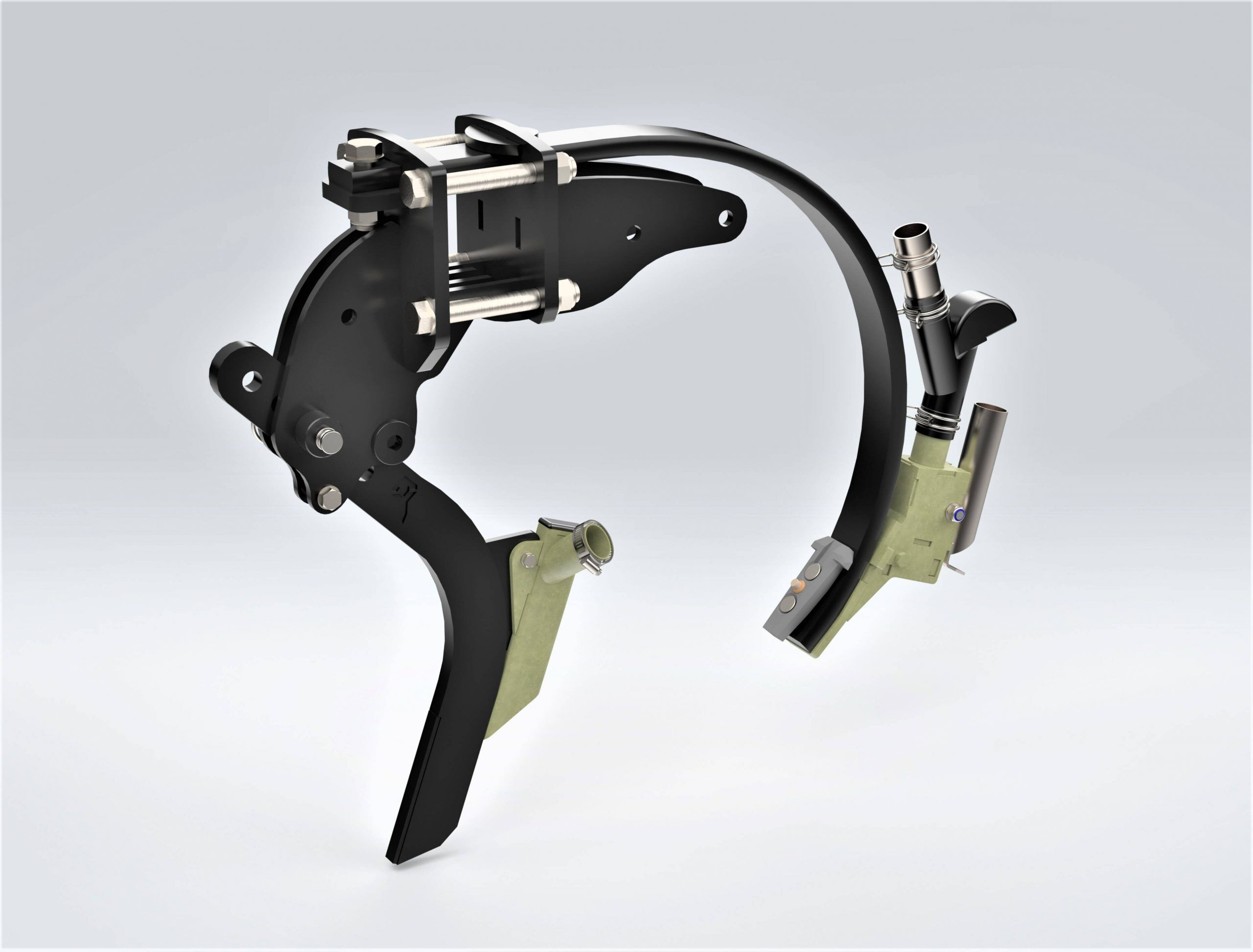

  • Quick-fit interchangeable seeding kits

Reduce costs

  • Unnecessary cultivations eliminated
  • Large fuel savings
  • Low running costs: minimal wearing
    and moving parts (under £2 per acre)
  • Low horsepower requirement and fuel use –
    approx. 50 hp/m
  • Rear toolbar dampening reduces
    component fatigue and improves
    transport comfort
  • Approx 1/3 cost of ploughing and ½
    cost of min-till

User friendly

  • Easy access, intuitive calibration
  • Easy-access toolbox incorporated into step frame
  • Quick change between different
    seeding set-ups
  • Highly manoeuvrable

Save time

  • Unncessary cultivations eliminated
  • Minimal, quick-fit wearing parts
  • Larger hopper to reduce downtime and increase output
  • Establishment time required approx 1/5 that of ploughing and
    ½ that of min-till

CONFIGURATION

M4 Evolution

Small seeds

Medium seeds

Large seeds

Specifications



Model Evolution M4
Daily output*: 30 ha
Minimum power requirement*: 200 hp
Road transport width: 2.73 m
Weight: 2,830 kg
Height: 2.66 m
Depth: 4.05 m
Hopper capacity: 1,910 l
Seeding tines: 13
Seed : fertiliser split: n /a
Linkage: CAT3/CAT4N
* typical / suggested
Standard fit Evolution M4

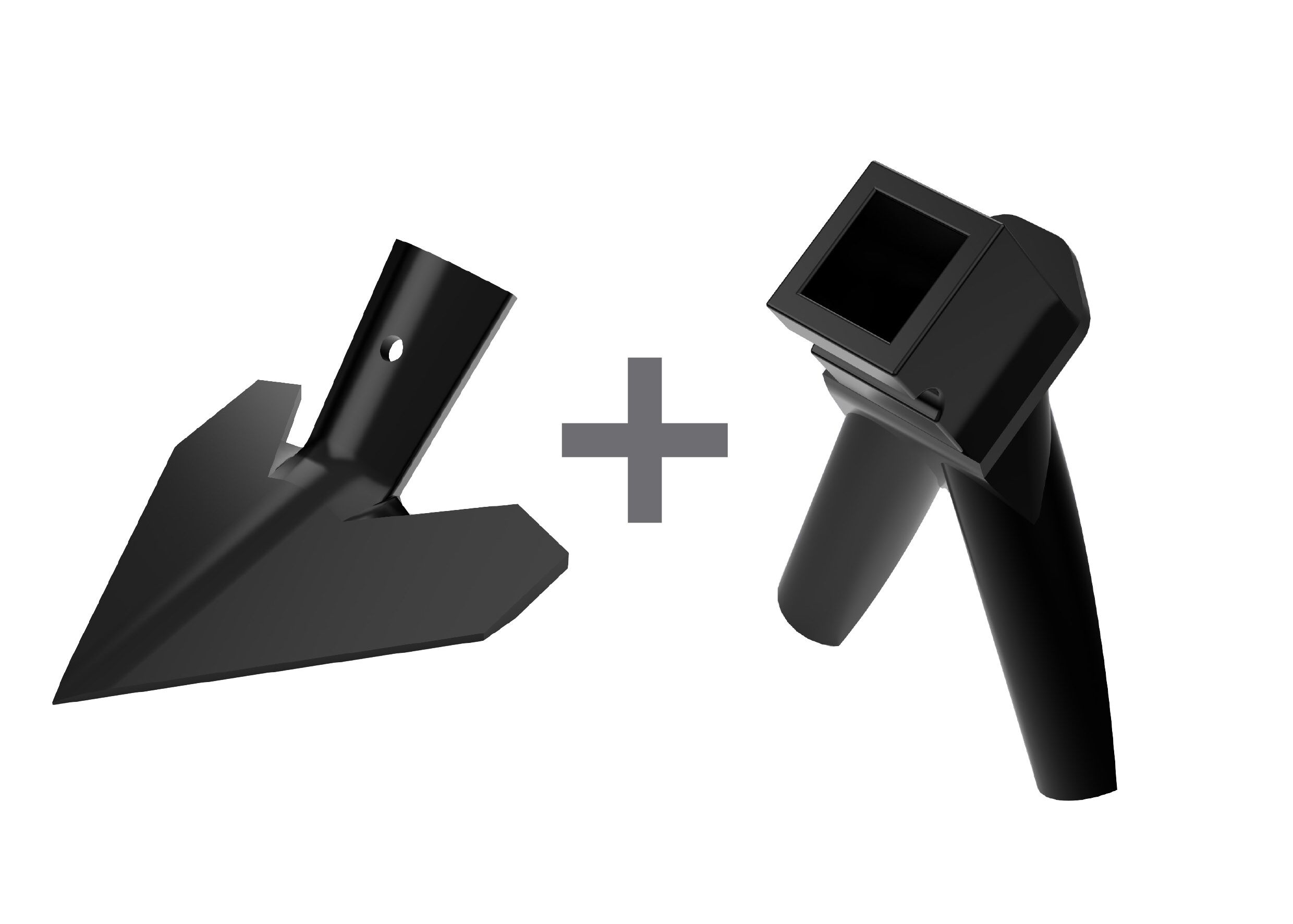

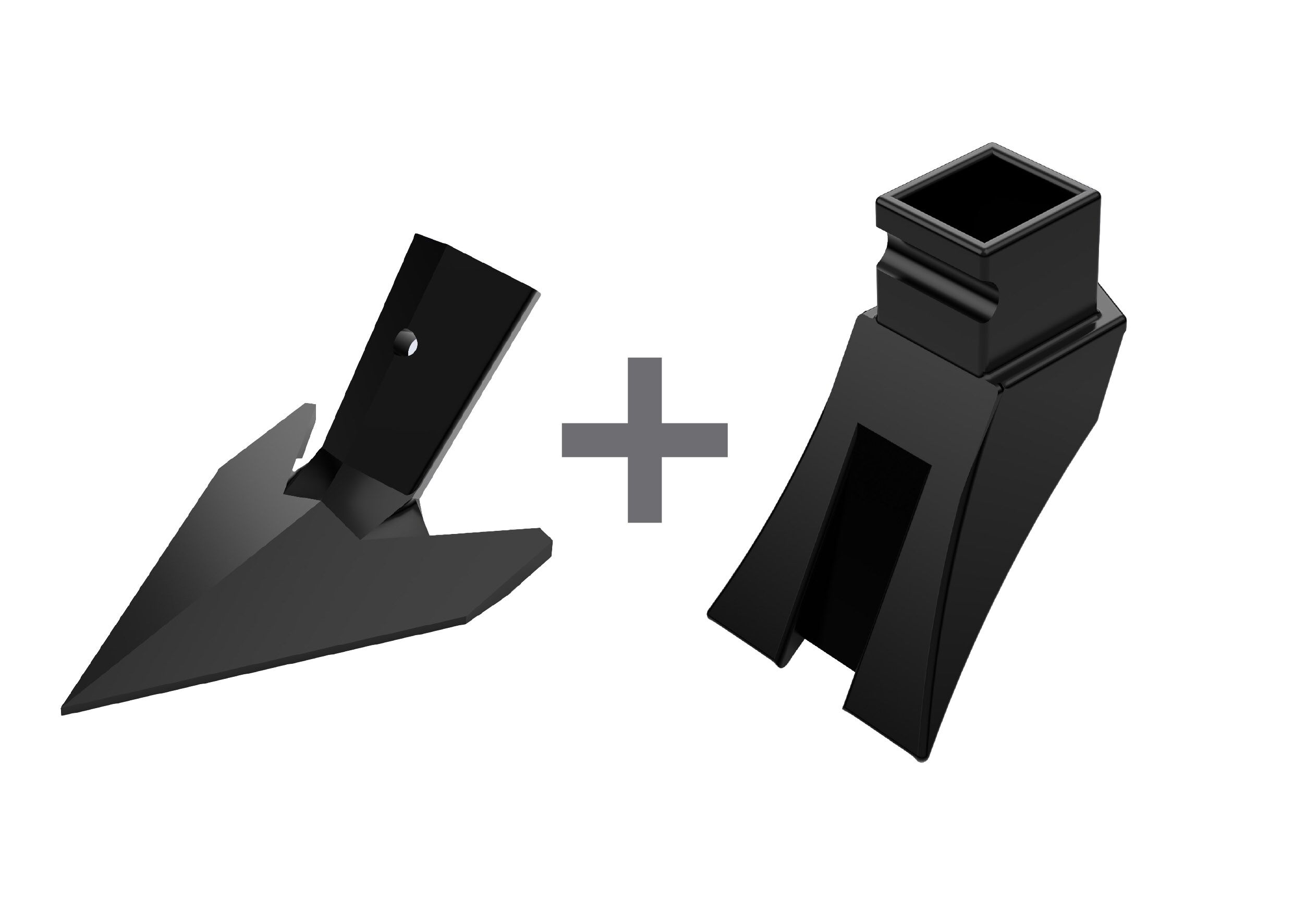

Leading tine & 180mm A shares: Standard

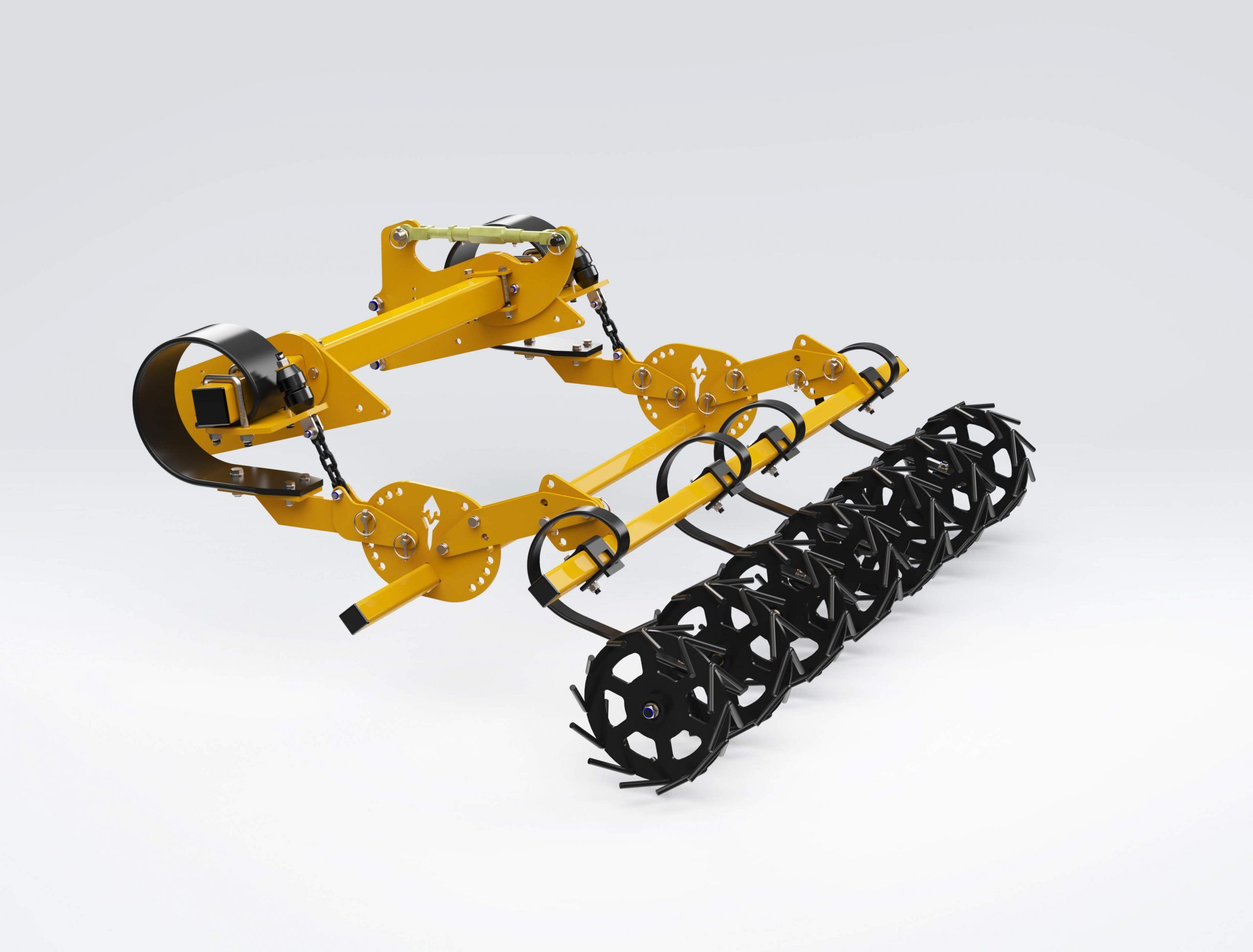

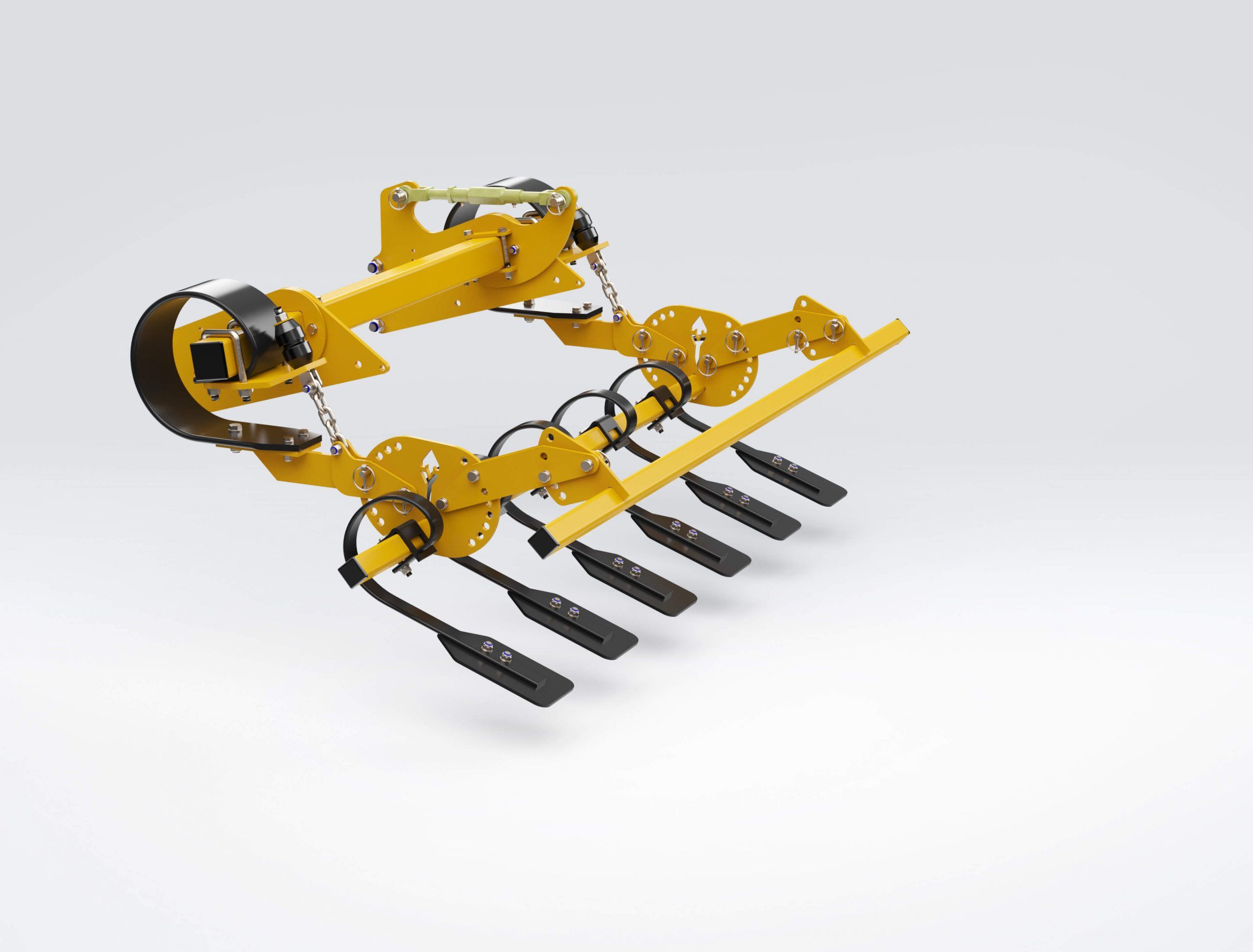

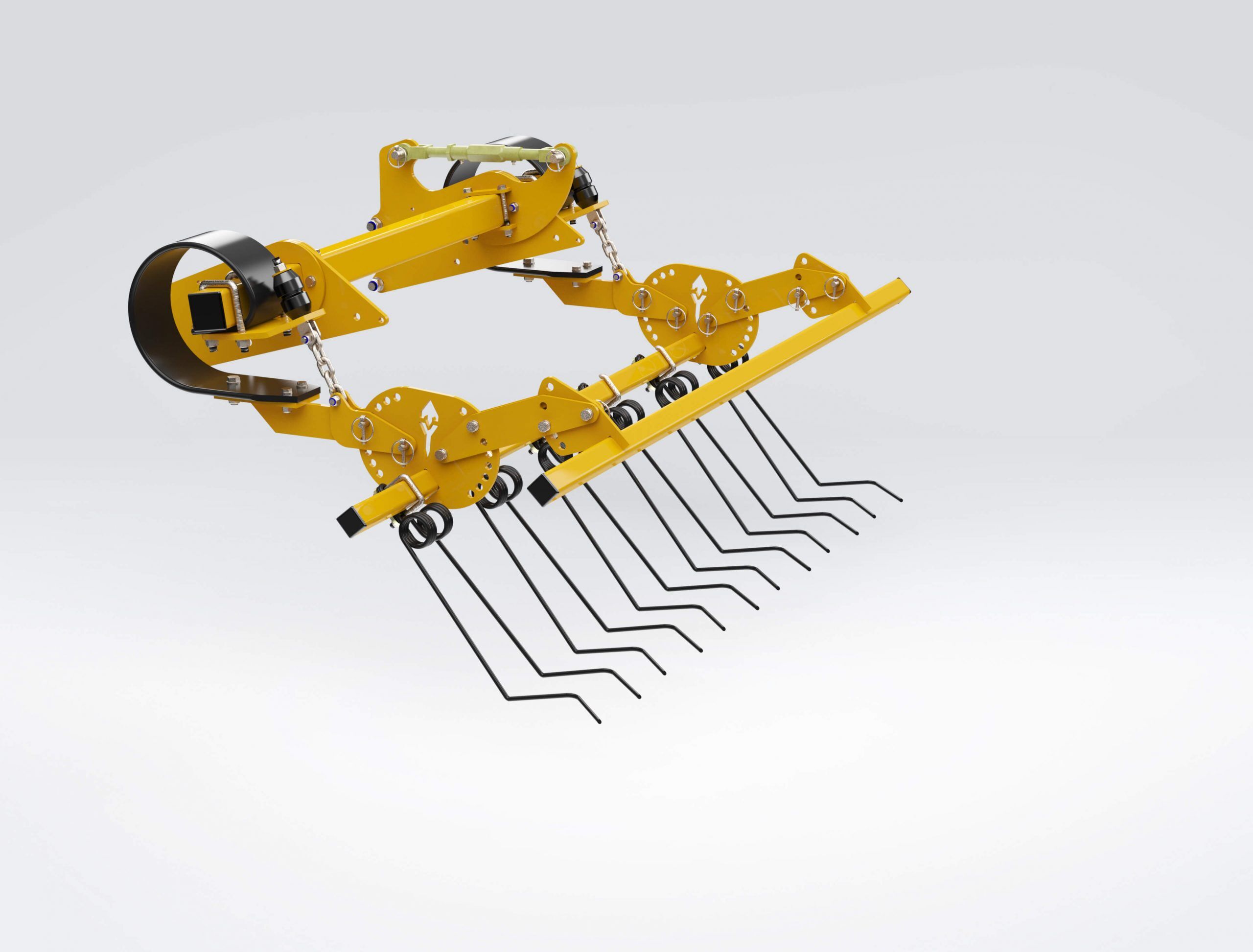

Double rear toolbar
(metal levelling boards & harrows):
Standard
Hydraulic fan: Standard
Artemis metering control: Standard
Tramlining: Standard
Road lights: Standard
Optional fit Evolution M4
GPS variable seed rate: Optional
Pre-emergence markers: Optional
Marker arms: Optional

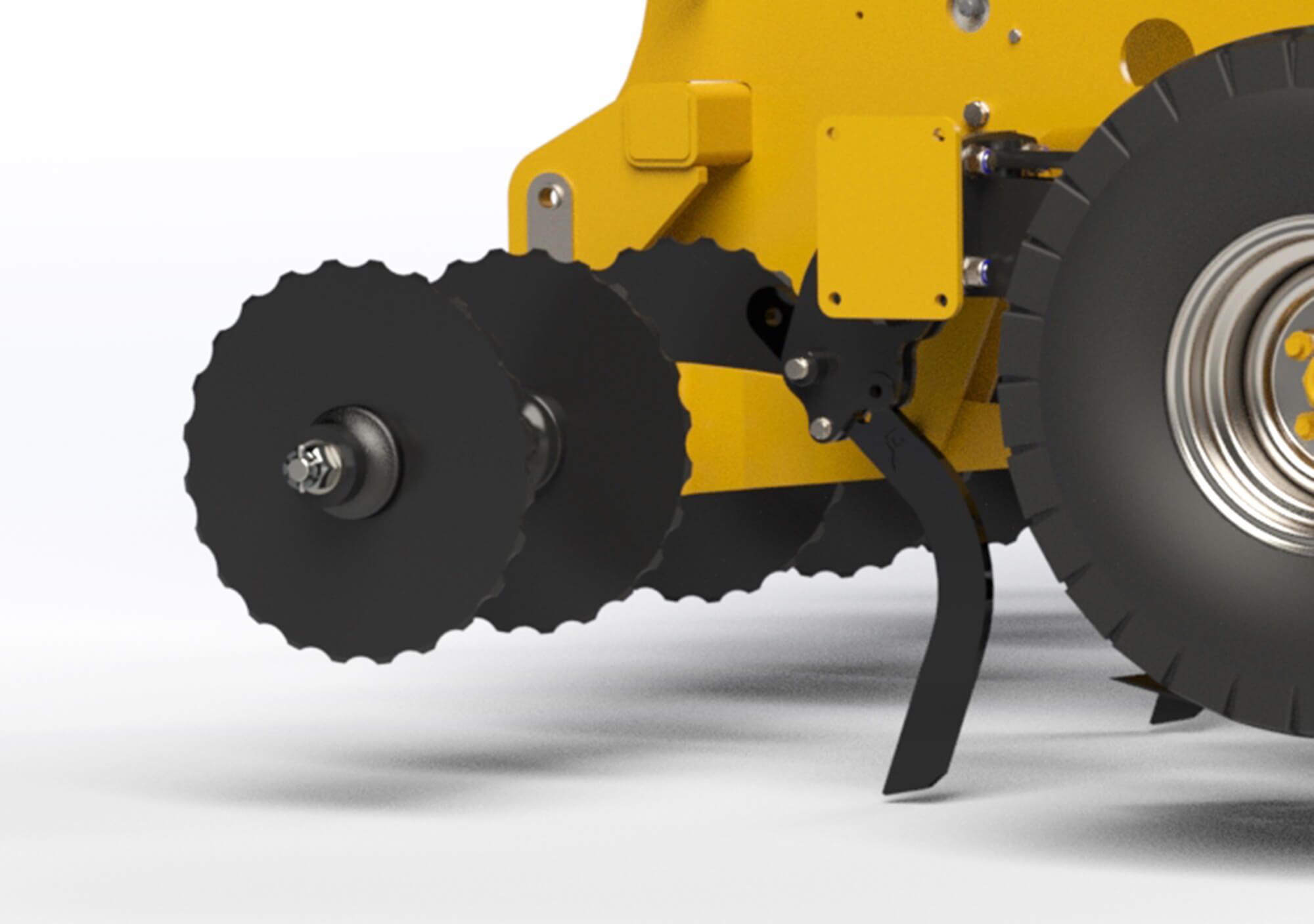

Hydraulically controlled front disc toolbar: Optional
Stone protection: Optional
Low disturbance kit: Optional
Blockage sensors (seed & fertiliser): Optional
Vision kit (work lights and camera): Optional
Micro granular applicator: Optional
ISOBUS compatible: Optional
Wheel scrapers: Optional
