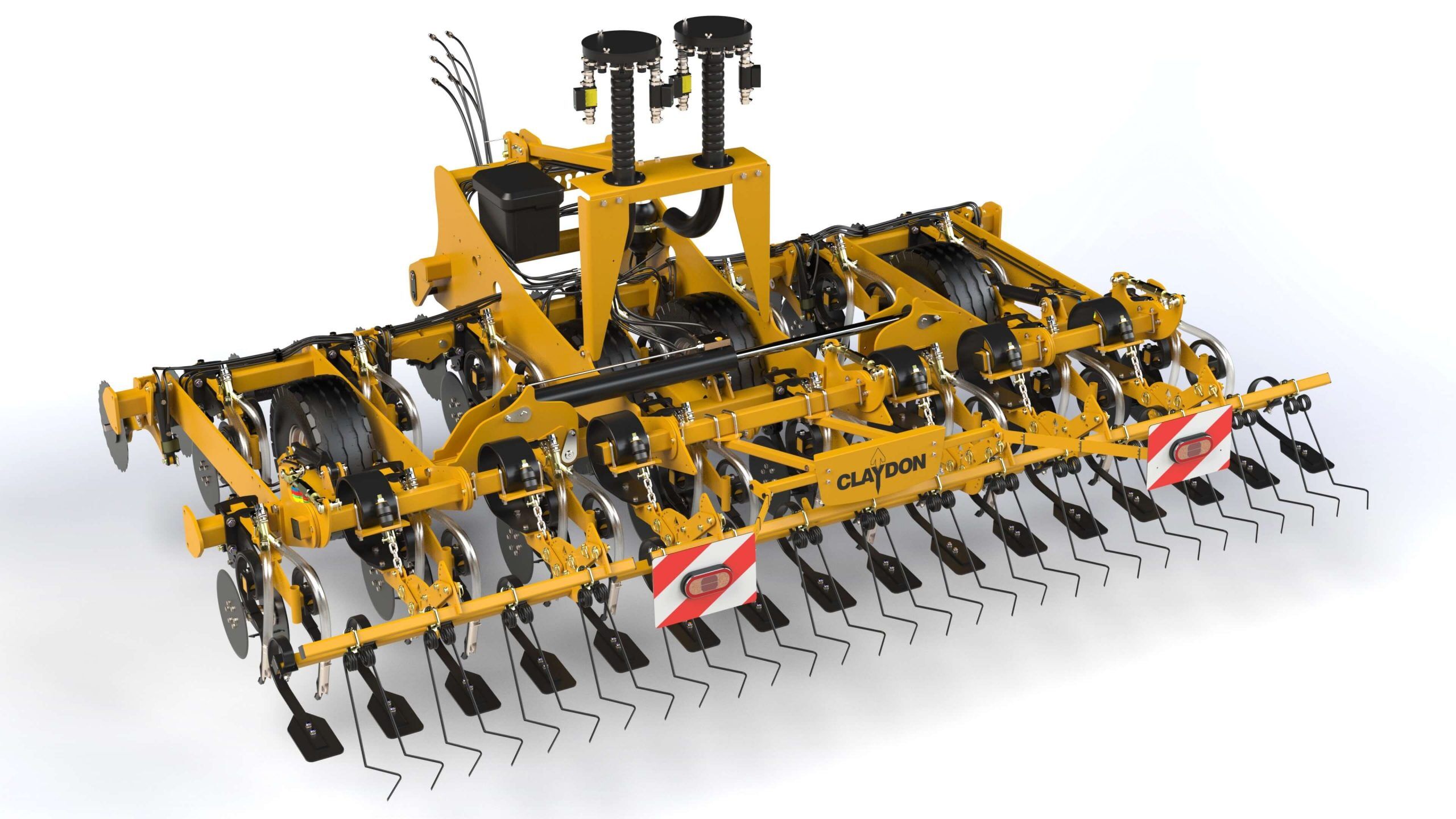

M4.8 EVOLUTION TOOLBAR

Seed distribution head with tramline valves as standard. Option for a second distribution head (38mm hose) with tramline valves to apply fertiliser to leading tine or seeding tine or split between the two.

Blockages sensors, marker arms and wheels scrapers are among the other options which can be specified.



Category:
Get a Quote

Description

Design

  • Simple, solid design
  • Longlife tungsten carbide leading tines
  • Exact seed placement (wheels run on undisturbed ground)
  • Self levelling chassis grades soil and follows contours
  • Hydraulically controlled front disc toolbar option
  • Hydraulic/shim seed depth adjustment
  • Quick-fit interchangeable seeding kits

Reduce costs

  • Unnecessary cultivations eliminated
  • Large fuel savings
  • Low running costs: minimal wearing
    and moving parts (under £2 per acre)
  • Rear toolbar dampening reduces
    component fatigue and improves
    transport comfort
  • Approx 1/3 cost of ploughing and ½
    cost of min-till

User friendly

  • Quick change between different
    seeding set-ups
  • Highly manoeuvrable

Save time

  • Unncessary cultivations eliminated
  • Minimal, quick-fit wearing parts
  • Establishment time required approx 1/5 that of ploughing and
    ½ that of min-till

CONFIGURATION

M4.8 Evolution

Small seeds

Medium seeds

Large seeds

Specifications

Model Evolution Toolbar M4.8
Daily output*: 36 ha
Minimum power requirement*: 240 hp
Road transport width: 2.80 m
Weight: 2,980 kg
Height: 2.66 m
Depth: 4.05 m
Seeding tines: 15
Seed : fertiliser split: n /a
Linkage: CAT3/CAT4N
* typical / suggested
Standard fit Evolution M4.8
Leading tine & 180mm A shares: Standard
Double rear toolbar
(metal levelling boards & harrows):
Standard
Hydraulic fan: Standard
Artemis metering control: Standard
Tramlining: Standard
Road lights: Standard
Optional fit Evolution M4.8
GPS variable seed rate: Optional
Pre-emergence markers: Optional
Marker arms: Optional
Hydraulically controlled front disc toolbar: Optional
Stone protection: Optional
Low disturbance kit: Optional
Blockage sensors (seed & fertiliser): Optional
Vision kit (work lights and camera): Optional
Micro granular applicator: Optional
ISOBUS compatible: Optional
Wheel scrapers: Optional
