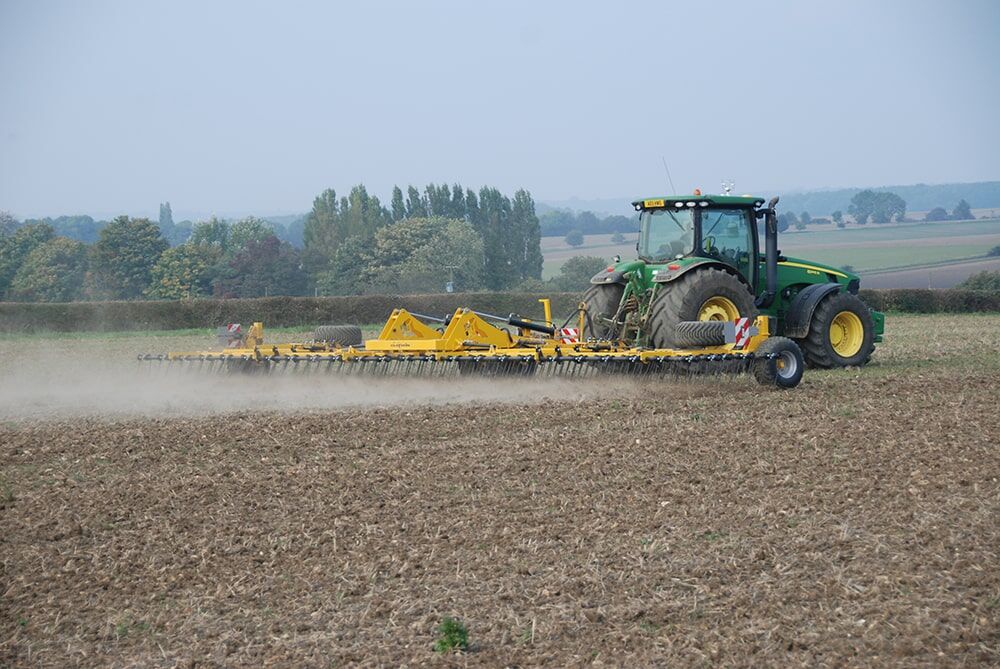

15m Straw Harrow

The Trailed 15m Straw Harrow is the largest model in the range, designed for farmers who need high performance straw harrow equipment for large-scale fieldwork. With a working width of 15 metres, this heavy-duty trailed straw harrow delivers exceptional stubble management and weed control while maintaining low running costs.

Engineered to operate at speeds of 15–20 km/h, the 15m wide straw harrow ensures maximum output, soil preparation efficiency, and crop residue management. Its robust design makes it the ideal choice for professional farming operations looking for an advanced trailed straw harrow system that combines reliability, productivity, and cost-effectiveness.

Get A Quote

Description

DESIGN FEATURES

Hydraulically adjustable tine angle

Change the working angle to suit field conditions to ensure optimum tilth is achieved
Quickly ease off pressure in wet or green trashy areas to avoid blockages

Wrap around’ extra thick, long life tines

Unique Claydon ‘wrap around’ design means the tines have no pressure points to snap
Claydon ‘wrap around’ design allows forwards speeds of up to 25kph
Turn on the headlands with the tines down in work to avoid trash build up; they won’t snap!
The ‘wrap around’ design allows the tines to vibrate and create optimum tilth

150mm square box section

Claydon Straw Harrows are built to last. Their frame is designed to handle very high working speeds

Five banks of tines

Huge clearance created by 5 rows makes blockages unlikely
240 vibrating tines engage the ground every 60mm ensuring the whole field is worked

Road transport

All Claydon Straw Harrows fold down to under 3m for road transport
Lightboards and protection guards are fitted a standard

Specifications

Model	15m Straw Harrow
Hourly output (at 20 km/h)(ha):*	20
Minimum power requirement (hp):*	300
Forward speed (km/h):*	15-25
Fuel usage (l/ha):	2
Road transport width (m):	2.75
Road transport height (m):	3.00
Weight (kg):	4,075
Pairs of 14mm tines (16mm optional):	120
Hydraulically adjustable depth wheels:
Lightboards and protection guards:
Tractor linkage:	Trailed, with a range of hitch options
