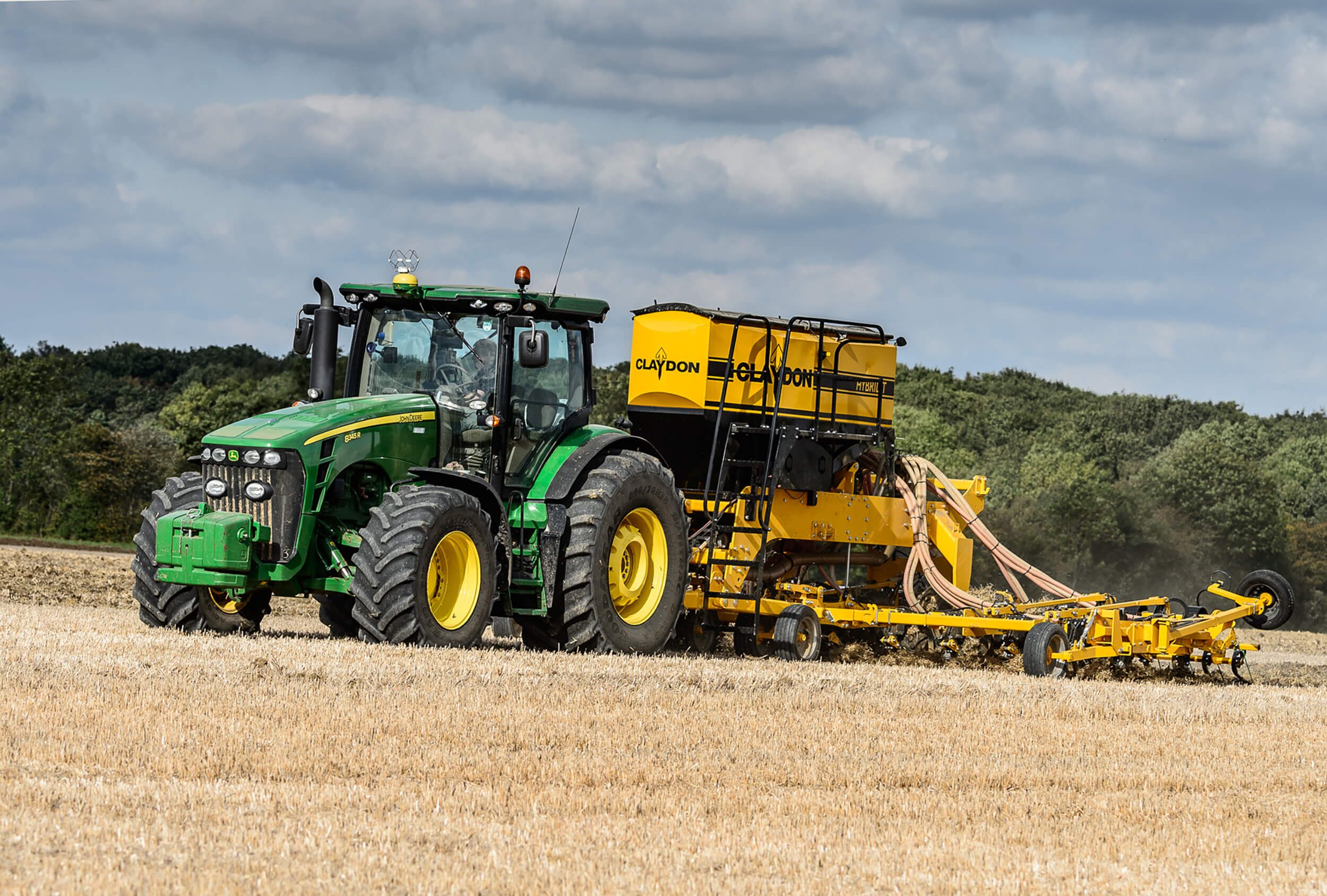

Hybrid T6

The high output Hybrid T6 has a 5,500l capacity hopper which can be split 60:40 for seed and fertiliser. The leading tine set-up is fitted as standard with a range of front and rear toolbar and tine and disc options available for every sowing scenario.

Category:
Get a Quote

Description

Design features

  • Large residue clearance
  • Light and smooth on headlands –lifts on depth wheels.
  • Floating seeding chassis independent of hopper.
  • Follows contours with centrally mounted depth wheels.
  • Levels fields with ground levelling chassis design.
  • Double levelling tool bar for consolidation
  • High grip with up to 50% weight transfer to tractor.
  • Large cleated tyres ensure light travel over fields.
  • No capping: depth wheels run on undisturbed soil.
  • Constant seed depth from very solid sprung seed tines.
  • Hydraulically adjustable depth control.
  • Targeted fertiliser options

Reduce costs

  • Eliminate unnecessary cultivations
  • Large fuel savings
  • Minimal moving and wearing parts
  • Low wearing parts costs (approx. £2 per acre)
  • Low horsepower requirement (approx. 50-65 hp per meter)
  • Long-life tungsten carbide leading times.
  • Approx 1/3 of cost of ploughing and ½ cost of mintill

Easy to use

  • Robust, simple drill design
  • Easy calibration – intuitive controls
  • Quick fit seeding option

Save time

  • Eliminate unnecessary cultivations
  • Minimal moving and wearing parts to change
  • Quick fit seeding shares and boots
  • Approx 1/5 time of ploughing and ½ time of mintill

THE CLAYDON HYBRID T CONFIGURATION

Specifications

Model Hybrid T6
Daily output*: (ha) 45
Minimum power requirement*: (hp) 300
Road transport width: (m) 2.90
Weight: (kg) 9,185
Height: (m) 3.80
Depth: (m) 9.51
Hopper capacity: 5,500 seed only (60:40 seed: fert)
Seeding tines: 19
Fan: Hydraulic
Artemis metering control: Standard
Tramlining: Standard
Variable seed rate: Standard
GPS variable seed rate: Optional
Pre-emergence markers: Optional
Marker arms Optional
Vision kit (work lights & cameras) Optional
Front tines and 7” A shares: Standard
Double rear toolbar: Metal boards and harrows standard (with options)
Stone protection: Optional
Fertiliser placement with seed or below: Optional
Front toolbar: Cutting disc standard (press wheel option)
Blockage sensors: Optional
Brakes: Optional
*typical/suggested
