HYBRID T – TRAILED DRILLS

Incredibly versatile, flexible and simple. Drill direct into stubble – min till – or plough. Over 16 years’ development experience – and now the new addition to the range – the compact 6m Hybrid T6c.

The leading tine busts out compaction, puts air in the soil and creates drainage and tilth for the seeding and rooting zone. The seeding tine then creates more tilth and places the seed under the tilth at your chosen depth above the drainage channel

  • High clearance
  • Simple to set up, easy to use, very low maintence
  • Wearing parts cost under £2 per acre

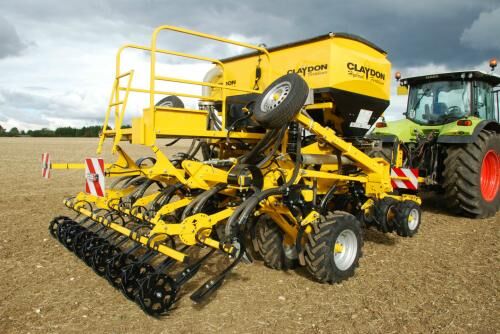

The Hybrid T trailed range of drills are available in widths of 3, 4, 4.8, 6 and 8m. The T3 trailed 3m drill is configured by adding a trailing kit to the mounted 3m Hybrid (see mounted drills page for specification). The front toolbar on the T3 has optional press wheels or cutting discs. (Please note that the vision kit and brakes are not available on the T3).

Categories: ,
Get a Quote

Description

SUPER-EFFICIENT DIRECT DRILLING

Incorporating the leading Claydon in-line tine design, the 3m, 4m, 6m and 8m Hybrid T trailed drills are designed for large scale farmers and contractors who require the highest outputs. Stand-out features include:

  • Simple, strong, huge capacity.
  • HUGE trash clearance.
  • Low horsepower requirement – 50-65 hp per meter.
  • Low running costs – minimal moving and wearing parts.
  • Long-life tungsten carbide leading tines.
  • Quick-fit wearing metal.
  • Light and smooth on headlands –lifts on depth wheels.
  • Floating seeding chassis independent of hopper.
  • Follows contours with centrally mounted depth wheels.
  • Levels fields with ground levelling chassis design.
  • Double levelling tool bar.
  • High grip with up to 50% weight transfer to tractor.
  • Large cleated tyres ensure light travel over fields.
  • No capping: depth wheels run on undisturbed soil.
  • Constant seed depth from very solid sprung seed tines.
  • Hydraulically adjustable depth control.
  • Easy calibration – intuitive controls.

CLAYDON TARGETED FERTILISER

Claydon Hybrid fertiliser technology is offered as a complete unit in the trailed machines.

THE CLAYDON HYBRID T CONFIGURATION

Row 1 Options

Row 2 Options

Row 3 Options

Fertiliser Options

Specification

Drill Type Hybrid T4 Hybrid T4.8 Hybrid T6c Hybrid T6 Hybrid T8**
Daily output (ha)* 30 35 40 45 60
Minimum power requirement (hp)* 200 250 300 300 400
Road transport width (m) 2.90 2.90 2.90 2.90 2.90
Road transport height (m) 3.20 3.30 3.33 3.80 4.35
Weight (kg) 6,000 6,200 7,957 9,185 11,185
Depth (m) 8.16 8.16 8.16 9.51 9.51
Hopper Capacity (I) 3,500 seed (60:40 seed/fert) 3,500 seed (60:40 seed/fert) 3,500 seed (60:40 seed/fert) 5,500 seed (60:40 seed/fert) 5,500 seed (60:40 seed/fert)
Seeding tines 13 15 19 19 25
Fan Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic
4 channel ISO/CAN-ISO/BUS control unit Standard Standard Standard Standard Standard
Tramlining Standard Standard Standard Standard Standard
Variable seed rate Standard Standard Standard Standard Standard
GPS variable seed rate Optional Optional Optional Optional Optional
Pre-emergence markers Optional Optional Optional Optional Optional
Marker arms Optional Optional Optional Optional Not available
Vision kit
(work lights & cameras)		 Optional Optional Optional Optional Optional
Front tines and 7″ seeding shares Standard Standard Standard Standard Standard
Double rear toolbar Standard with options Standard with options Standard with options Standard with options Standard with options
Stone release Optional Optional Optional Optional Optional
Split fert/seed hopper Optional Optional Optional Optional Optional
Fertiliser placed with seed or below Optional Optional Optional Optional Optional
Front toolbar Standard with options Standard with options Standard with options Standard with options Standard with options
Blockage sensors Optional Optional Optional Optional Optional
Brakes Optional Optional Optional Optional Optional
*typical/suggested
**can also be shipped broken down with dimensions as for T6 plus separate crate:  length 4.14m x width 1.87m x height 1.86m
