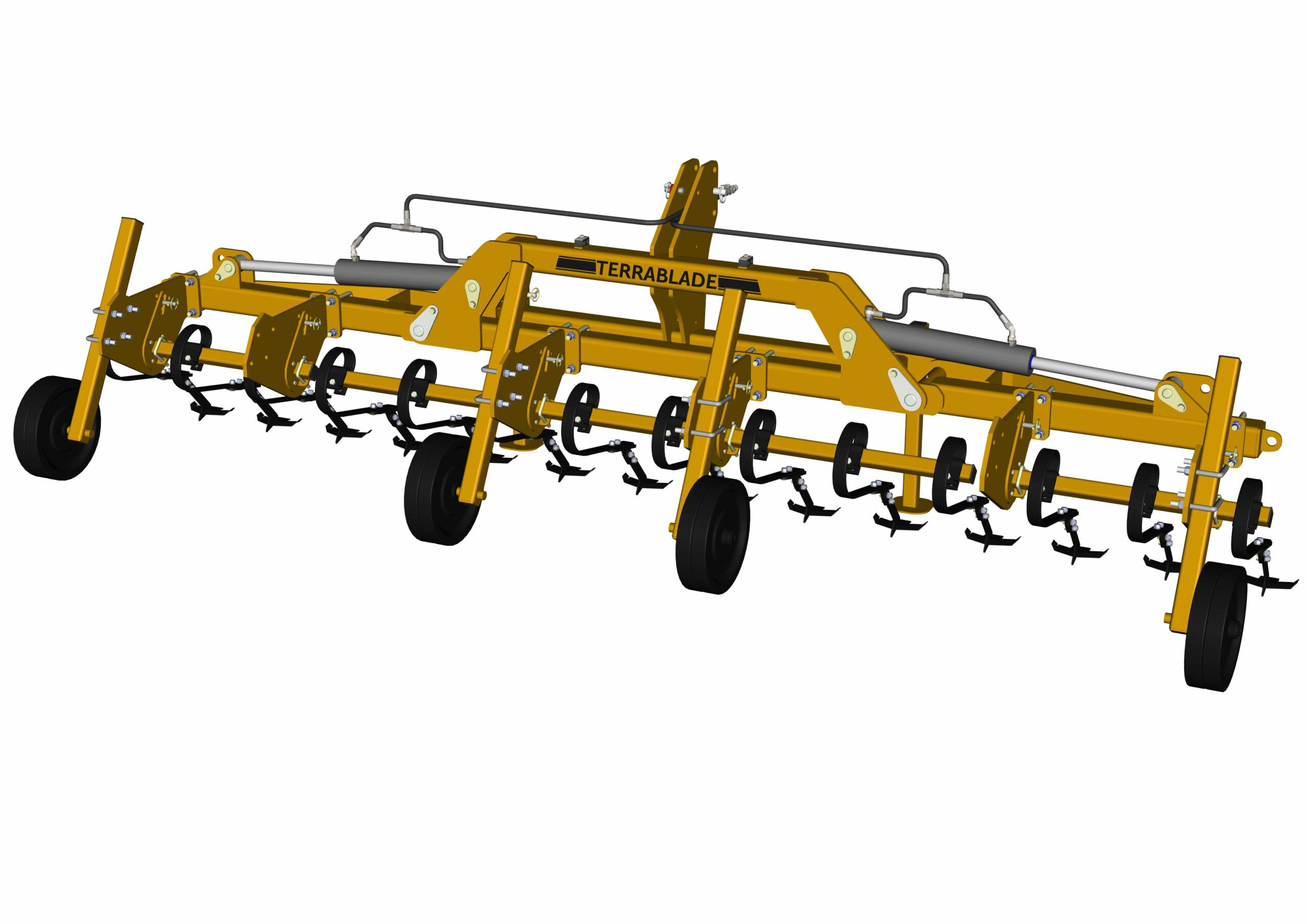

4m TerraBlade

The 4m TerraBlade can be used in all types of strip-seeded crops.  Unique Claydon-designed tines operate at up to 30mm deep and can be adjusted to exert different pressures, depending on the requirements of different soil conditions. These blades are tungsten-carbide-faced and available in 125mm, 150mm, 175mm and 200mm sizes.

Category:
Get a Quote

Description

DESIGN FEATURES

  • Contour-following 125mm, 150mm, 175mm or 200mm blades
  • Tungsten carbide-faced for longer wear-life, running deeper even in hard, dry conditions
  • Adjust pressure to suit variations in soil types and conditions
  • Infinite adjustment to suit any row width for use in any band-sowing system
  • Upturned wing design ensures positive cutting action across full width of blade and keeps shape for longer
  • Upturned wing design reduces soil-throw
    TerraBlade 125mm BladeTerraBlade 150mm BladeTerraBlade 175mm BladeTerraBlade 200mm Blade
  • Heavy-duty box section steel frame
  • Built to last
  • Simple design avoids unnecessary complexities
  • Low wearing part and operational costs

Specifications

Model 4m TerraBlade
Hourly output*: 2 ha/h
Minimum power requirement*: 40 hp
Forward speed*: 6 km/h
Working depth: 30mm
Road transport width: 2.65m
Road transport height: 2.05m
Weight: 475kg
Width: 4.16m
Height: 1.09m
Depth: 1.33m
Blades: 14
