M3 EVOLUTION

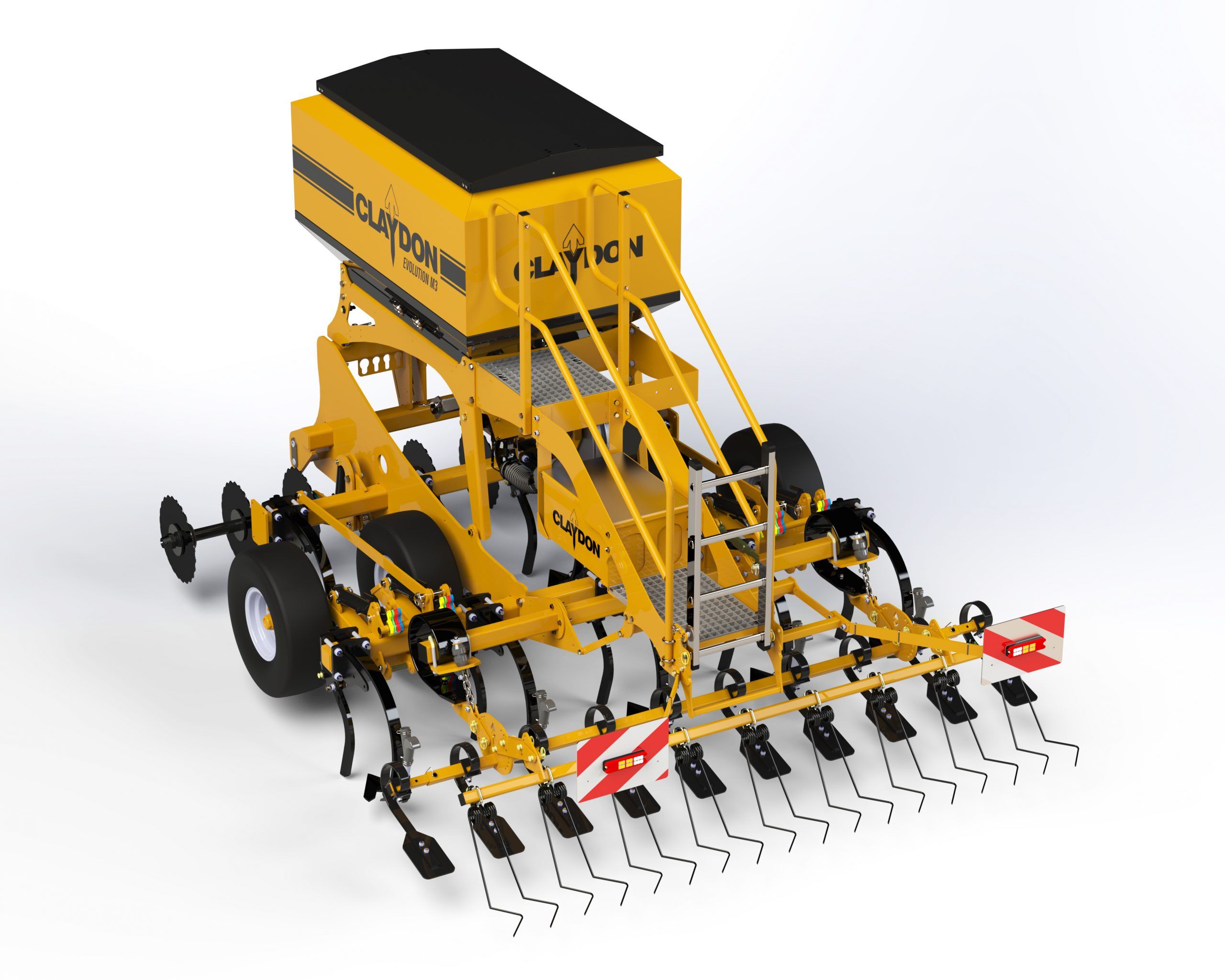

The seed only 3m Evolution drill is fitted with a 1,910 litre hopper.  The M3 can drill up to 20 hectares a day. It comes with a full range of rear toolbar and seeding set-up options. The leading tine can also be swapped out for the LD lower disturbance set-up.  A drawbar and front toolbar may be added to transform into a trailed drill.  GPS speed sensing and a 4 channel drill computer come fitted as standard.   The M3 has a recommended minimum power requirement of 150 hp.

Kategoria:
Get a Quote

Opis

Design

  • Simple, solid design
  • Longlife tungsten carbide leading tines
  • Exact seed placement (wheels run on undisturbed ground)
  • Self levelling chassis grades soil and follows contours
  • Hydraulically controlled front disc toolbar option
  • Hydraulic/shim seed depth adjustment
  • Larger hopper to reduce downtime and increase output
  • 90 litre hopper option with venturi, toolbar or inter-row distribution
  • Quick-fit interchangeable seeding kits

Redukcja kosztów

  • Unnecessary cultivations eliminated
  • Large fuel savings
  • Low running costs: minimal wearing
    and moving parts (under £2 per acre)
  • Low horsepower requirement and fuel use –
    approx. 50 hp/m
  • Rear toolbar dampening reduces
    component fatigue and improves
    transport comfort
  • Approx 1/3 cost of ploughing and ½
    cost of min-till

Przyjazny dla użytkownika

  • Easy access, intuitive calibration
  • Easy-access toolbox incorporated into step frame
  • Quick change between different
    seeding set-ups
  • Highly manoeuvrable

Oszczędność czasu

  • Unncessary cultivations eliminated
  • Minimal, quick-fit wearing parts
  • Larger hopper to reduce downtime and increase output
  • Establishment time required approx 1/5 that of ploughing and
    ½ that of min-till

CONFIGURATION

evolution-row

Row 1 Options

Row 2 Options

Row 2 / 3 Options - seed / fertiliser

Row 3 Options

Small seeds

Medium seeds

Large seeds

Row 4 Options
