HYBRID M – MOUNTED DRILLS

Incredibly versatile, flexible and simple. Drill direct into stubble (see first video clip) – min till – or plough (second video). Over 17 years’ development experience.

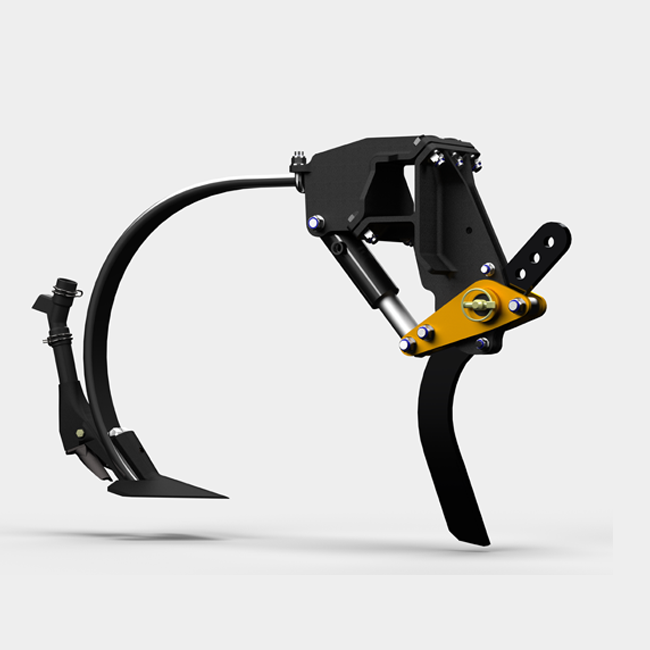

The leading tine busts out compaction, puts air in the soil and creates drainage and tilth for the seeding zone. The seeding tine then creates more tilth and places the seed under the tilth at your chosen depth above the drainage channel

  • High clearance
  • Simple to set up, easy to use, very low maintence
  • Wearing parts cost under £2 per acre
Categories: ,
Get a Quote

Description

SUPER-EFFICIENT STRIP TILL

Claydon Hybrid Drills deliver on the promise of super-efficient strip tillage. Incorporating the leading Claydon in-line tine design, all models benefit from a range of stand-out features to make this a truly versatile tool for low cost establishment:

  • Simple, strong, lightweight design.
  • HUGE trash clearance.
  • Low horsepower, low fuel usage.
  • Low running costs: minimal wearing and moving parts.
  • Long-life tungsten carbide leading tines.
  • Quick, easy servicing – change wearing metal in minutes.
  • Highly manoeuvrable.
  • Exact seed placement – wheels run on undisturbed ground.
  • Constant seed depth from stiff spring steel seeding tines.
  • No capping – wheels run between the seeded rows.
  • Levels fields, follows contours with soil grading chassis design.
  • Easy calibration, intuitive controls.

CLAYDON TARGETED FERTILISER

For the Claydon Hybrid mounted machines, fertiliser technology is offered as a complete integrated unit in the 3m fertiliser drill.

HOPPER FERTILISER OPTIONS

A micro fertiliser tank can be fitted to the rear of any mounted drill.

CLAYDON HYBRID M CONFIGURATION

Specification

 Drill Type 3m 3m Fert 4m 4.8m 6m
Daily output (ha)* 20 20 30 35 40
Minimum power requirement (hp)* 150 150 200 250 300
Road transport width (m) 3.0 3.0 2.9 2.9 3.0
Weight (kg) 1,890 1,920 2,600 2,840 3,500
Height (m) 2.45 2.75 2.75 2.75 2.75
Depth (m) 3.40 3.40 3.40 3.40 3.40
Hopper capacity (l) 1,750 2,100 (50:50 seed:fert) 1,750 1,750 1,750
Seeding tines 9 9 13 15 19
Fan Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic
Artemis metering control Standard Standard Standard Standard Standard
Tramlining Standard Standard Standard Standard Standard
Variable seed rate Standard Standard Standard Standard Standard
GPS variable seed rate Optional Optional Optional Optional Optional
Pre-emergence markers Optional Optional Optional Optional Optional
Marker arms Optional Optional Optional Optional Optional
Lightboards Standard Standard Standard Standard Standard
Front tines and 7” A-shares Standard Standard Standard Standard Standard
Double rear tool bar Standard with options Standard with options Standard with options Standard with options Standard with options
Stone Protection Optional Optional Optional Optional Optional
Micro fertiliser (Artemis driver) Optional Optional Optional Optional Optional
Twin tine kit Optional Optional Optional Optional Optional
Slug pellet applicator (Artemis driver) Optional Optional Optional Optional Optional
Blockage sensors Optional Optional Optional Optional Optional
Additional depth wheels Optional Optional
*typical/suggested
